This machine features two counter-rotating figure-8 shaped kneading tools. The dough is kneaded between the two tool sets, delivering significantly higher working efficiency than conventional spiral mixers. Mixing time is shortened, so more dough is produced in less time.
Thanks to its gentle kneading action and low heat input, the system is suitable for virtually all dough types — making it especially attractive to large bakeries and industrial producers.
Order(MOQ) :
1Origen del producto :
ChinaPlazo de entrega :
1 Month+1. SPECIAL KNEADING SYSTEM:This machine features two counter-rotating figure-8 shaped kneading tools.

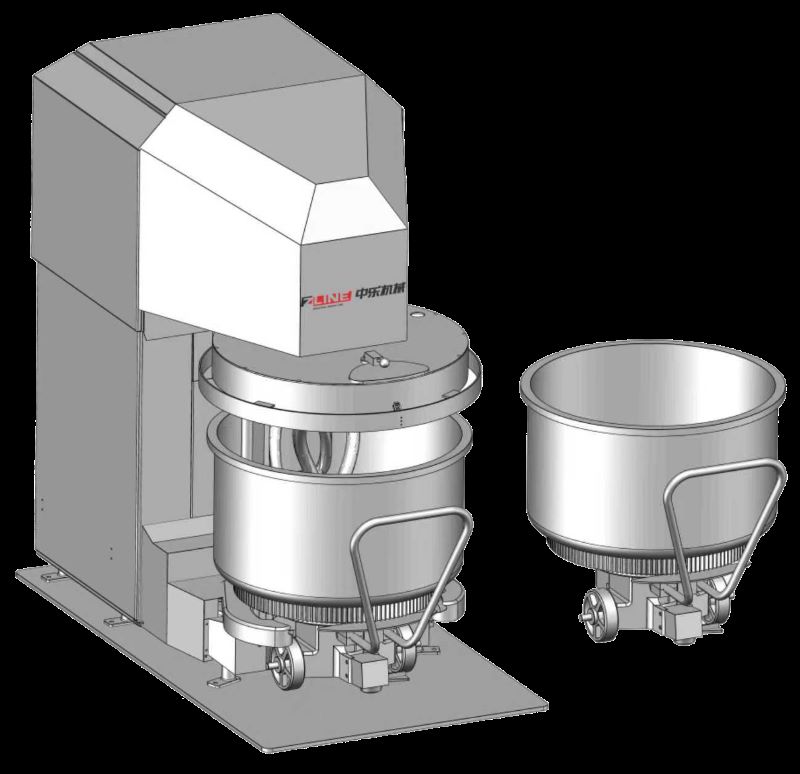

2. FLOOR-MOUNTED, HEAVY-DUTY DESIGN:The machine is designed as a fixed unit, permanently installed and anchored to the floor via its frame. The two figure-8 kneading tools are made of stainless steel and can be lifted out together with the mixer head for easy cleaning and maintenance.
The stainless steel bowl is removable and mounted on a mobile trolley with casters — simply roll the loaded bowl away for the next processing step (transfer, fermentation or dividing).
3. ADVANCED TOUCH CONTROL:
- Max. dough per batch: 400 kg
- Max. flour per batch: 250 kg
The standard design is based on wheat flour (type 550) and a standard recipe:
- Flour absorption (ICC 115/1): 54–58%
- Dough yield (TA): 154
- Final dough temperature: >24 °C
If other flours or flour blends are used, parameters must be adjusted accordingly.
Batch size may need to be reduced for:
- Stiffer doughs (TA < 154)
- Colder doughs (< 24 °C)
- Use of additives or high water-absorption ingredients
| Total power | 34 kW |
| Motor power | 30 kW |
| Bowl capacity | 340 L |
| Tool speed (fast) | 230 rpm |
| Tool speed (slow) | 10 rpm |
| Machine weight | 2,000 kg |
| Overall dimensions (L × W × H) | 2150 × 980 × 2300 mm |
| Material | Stainless steel kneading tools and bowl |
1.Machine test run before delivery (FAT available)
2.English operation manual & electrical drawing provided
3.Overseas installation & commissioning support
4.Long-term spare parts supply & technical consultation
Why Choose ZLINE?With years of experience in bakery automation solutions, ZLINE specializes in designing and manufacturing advanced bakery equipment for global customers. From individual machines to complete automated production lines, ZLINE provides reliable equipment, customized engineering solutions, and professional technical support to help bakeries improve efficiency and product competitiveness. ZLINE offers complete line solutions from raw material batching to depositing/molding, plus process commissioning, installation training, and remote after-sales support.
|
